Animal awake self-administration system
Self-administration experiment (SA) is a common method in behavioral pharmacology research. It uses the positive reinforcement effect of certain drugs to make animals establish a connection between behavior and reward through certain conditional control, thereby simulating human beings. Some cases of drug abuse.Pre-consultation
Self-administration experiment (SA) is a common method in behavioral pharmacology research. It uses the positive reinforcement effect of certain drugs to make animals establish a connection between behavior and reward through certain conditional control, thereby simulating human beings. Some cases of drug abuse.
The system can connect up to 32 animal cages, one animal cage can be easily inserted into the system with 1 or 2 multi-function inserts, each insert can be installed with 3 to 4 functional components, which can be easily and quickly replaced with different functional components. Each standard test box contains 1 to 2 pedals that animals can step on. The pedals are connected to the drug pump and the liquid pump with a micro switch as the core. The pedal can also be replaced with an animal nose probe assembly as a reactive element. The different functional modules of the liquid pump can be freely configured with flow and purpose.
1. Specification of experimental cage: 30x30x30cm (length x width x height)
2. Number of channels: 1-100 channels are optional
3. The infusion injection pump can hold the syringe: 1ml ~ 150ml The liquid pump with electronic drive is designed to precisely deliver liquid rewards using short-term electrical pulse operation.
4. Speed range: (0.01mm/s~0.21mm/s)
5. Dosing time setting: 10ms~1000S,
6. Equipment working power: 12V2A
7. Adapter power supply: 100～240V/50Hz
8. Advanced liquid/particle bonus area, including door with sensor, light and I/R sensor. The bottom is milled aluminum and features two liquid delivery tubes for rinsing and cleaning on the outside of the container.
9. Slider stroke: 140m
10. Condition signal, red light, green light, yellow light
11. Nostril touch position: 2
12. Number of operating software channels: 1-100 channels (optional)
13. Each channel has an independent pulse signal recording line, and the animal operation process is clear at a glance.
14. Passed the 9001 quality management system certification. The equipment has the national registered trademark, and the software copyright of Labmaze animal behavior video analysis system
15. It can automatically identify animals standing upright, walking, etc., and does not need a special infrared box to test the number of animals standing upright, just an ordinary container. This software can also be used for real-time recording and analysis of simple actions such as moving physical hair, washing face, eating and drinking; (optional)
16. It has the fusion function of removing the interference of animal cage rods, and the elimination function of eliminating the movement of the tail of the animal;
17. Simultaneous real-time tracking and MPEG-4 encoding (hardware special requirements) allow you to visualize the desired tracking data and stored video files
18. The hardware monitors whether the animal is in a cooperative state in real time, and counts the number of licks and licking events in real time; a signal light is required to prompt the animal for the next operation; punishment methods: electrical stimulation, gas stimulation (optional); reward methods: sugar water, sugar pill;
19. The software automatically distributes sugar pills to the feeder according to animal operation events. The number of distributions and the distribution time are controllable by the software.
20. The amount of water supply needs to be strictly controlled, and the timing of water supply needs to be strictly controlled;

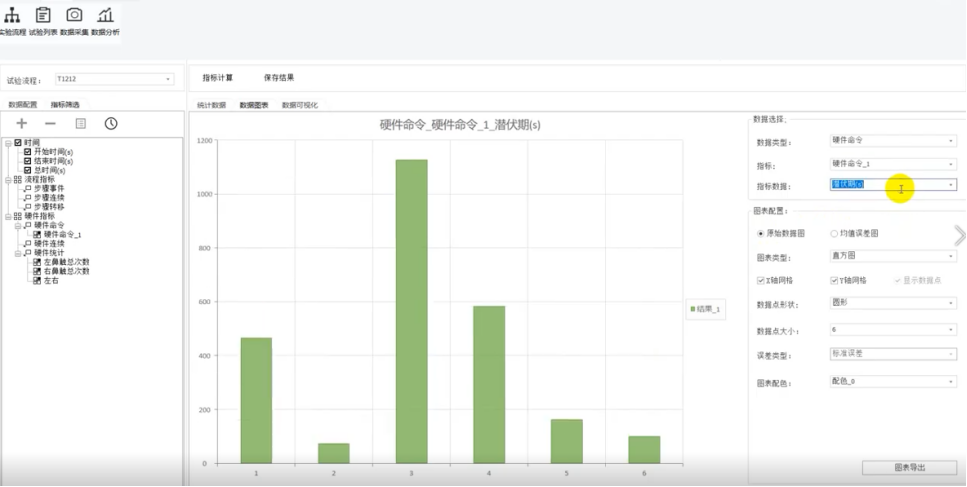

21. Statistical data related to the animal reward mechanism, such as the number of drinking water, the drinking time, the amount of drinking water, the correct number of times, the number of errors and other parameters;
22. The software needs to be very convenient to set the test process, and there is no delay in input and output to ensure efficient learning of animals;
23. The software has a programming interface, and users can program according to their needs. This interface is friendly to operate, and non-professionals can easily learn programming. The software provides templates, which can do default template experiments, and can also adjust parameters on the basis of templates. Commonly used The experiment can save the template, which is convenient for the establishment and use of the next experiment;
24. Go No-Go operation box, the walls and floors are easy to disassemble, replace and clean; (optional)
25. The electrical stimulation adopts RJ45 shielded twisted pair connection, which is stable, easy to operate, has been replaced, and the standard accessories reduce the after-sales cost of the laboratory;
26. The electric stimulation fence adopts 5mm solid stainless steel rod, with low resistance, good stability, and obvious stimulation to animals (optional).

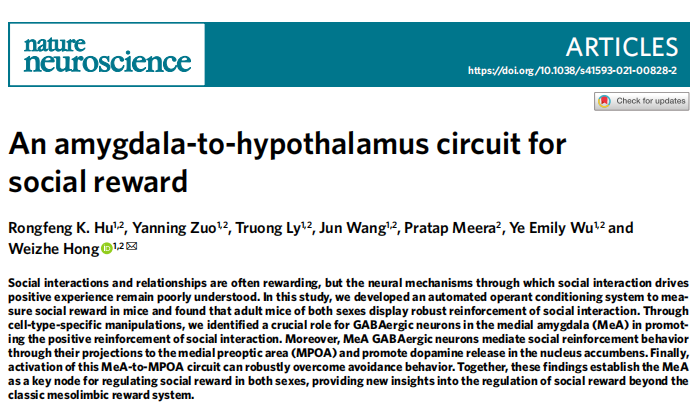

Some published articles
For more literature, please consult: 400-016-4066
This parameter is the basic parameter of the equipment, please contact our company for specific parameters
